Angiomyolipomas (AMLs) are the most common mesenchymal renal neoplasms and are classified as neoplasms of perivascular epithelioid cells (PEComa). They are observed in 0.1–0.22% of the general population and are four times more common in females.1 Two broad types have been described: sporadic isolated AML and AML associated with tuberous sclerosis. Approximately 80–90% of renal AML occur sporadically.2 Aneurysm formation is usually noted in AMLs associated with tuberous sclerosis and is rare in the sporadic variety.3 This report describes a case of aneurysm formation in a large, sporadic AML in a 54-year-old Bahraini woman.

Case report

A 54-year-old woman presented to the Bahrain Defence Force Hospital, Riffa, Bahrain, with right flank pain and mild hematuria. She had rheumatoid arthritis, but there was no other significant medical history. Pre-contrast computed tomography (CT), showed a mass in the anterior aspect of the right kidney measuring 11 cm in diameter. The mass was of mixed attenuation and predominantly soft tissue with a significant amount of fat. There was no calcification within the mass [Figure 1].

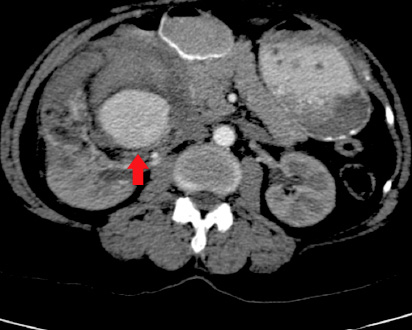

Contrast CT demonstrated multiple enhanced tortuous dilated vessels within the mass, together measuring 44 mm in diameter, including definite aneurysmal dilatation and possible hemorrhage. The rest of the mass showed non-homogeneous faint enhancement, and there was fat stranding and fascial thickening especially around the lower part. The renal mass displaced the inferior vena cava, there was no hydronephrosis on the right side, and no definite filling defects in the right renal vein [Figure 2].

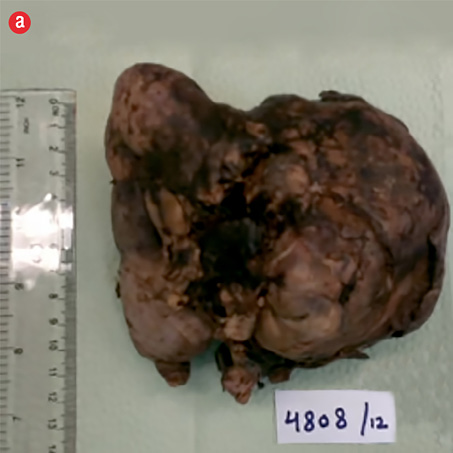

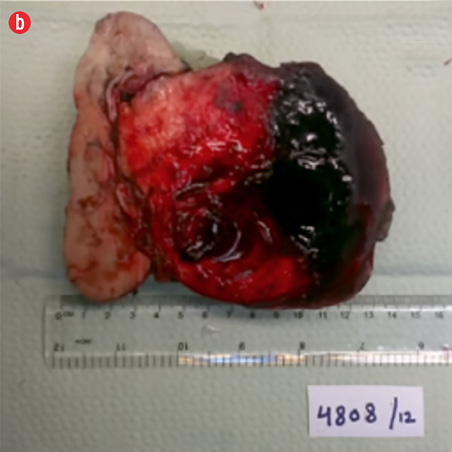

Based on the clinical and radiologic findings, a presumptive diagnosis of AML of the right kidney was made. Laparoscopic right nephrectomy converted to open surgery was performed. There was a large mass measuring 13 × 12 × 8 cm bulging from the corticomedullary zone compressing the pelvis. The capsule overlying the tumor showed a hemorrhagic area. The renal artery and vein were not identified, and the adjacent kidney tissue showed a few cortical scars. No adrenal gland or lymph nodes were identified. The pelvis was compressed and grossly uninvolved by the tumor. The resection specimen received in the histopathology laboratory is shown in Figure 3. The kidney measured 13 × 12 × 8 cm, and arising from the posteromedial aspect was a roughly spherical tumor measuring 10.5 cm in maximum dimension. The cut surface of the tumor was solid, tan-red, and displayed extensive areas of hemorrhage.

Microscopic examination revealed a neoplasm composed of mature adipose tissue, blood vessels, and proliferations of smooth muscle cells [Figures 4a and b, and Figure 5]. The neoplastic smooth muscle cells were mostly spindle-shaped, although in some areas (less than 5% of the sampled tissue; 20 blocks of tumor taken in all) the myoid cells were epithelioid-shaped [Figure 4b]. The cellular proliferation, both spindle and epithelioid, showed characteristic perivascular accentuation with positive staining for smooth muscle actin [Figure 4c] and HBM-45 protein [Figure 4d]. The blood vessels within the tumor showed irregular thickening and lacked elastic lamina. Aneurysmal dilatation and rupture was evident in one of the vessels, which measured 5 mm in diameter [Figure 5]. There was extensive hemorrhage with consequent areas of necrosis, but only minimal nuclear pleomorphism and no significant mitotic activity. The tumor-kidney interface was non-infiltrative, and there was no invasion of the capsule or renal pelvis. The adjacent kidney tissue showed mild inflammatory changes. A histological diagnosis of AML was confidently rendered.

The patient was discharged five days after surgery with uneventful immediate post-surgical follow-up.

Discussion

AML is a benign neoplasm arising most often in the kidney although it has been described in a wide variety of sites.1 Most patients are adults and one-third suffer from tuberous sclerosis.2 The tumors are multiple in one-third of cases and bilateral in 15% of cases.2 Histologically, AML is composed of mature adipose tissue, thick-walled blood vessels lacking elastic tissue lamina, and bundles of smooth muscle, which are mostly spindled in morphology but can also be epithelioid.4 The smooth muscle component is derived from the perivascular epithelioid cell (PEC), and hence, AML is one of a number of tumors classified under the general term PEComa, a group that includes clear cell tumor and lymphangioleiomyomatosis.4 The smooth muscle component of AML (and other PEComas) stains positive not only for actin and desmin but also for melanocytic markers such as HMB-45 and Melan-A. This correlates with the identification of premelanosome-like organelles on electron microscopy.5

While the vast majority of AML show benign biological behavior, a small proportion are malignant and may metastasize.4 The following histological features are predictive of malignancy in AML: >70% atypical epithelioid cells, >2 mitotic figures per 10 high-power field (HPF), atypical mitotic figures, and necrosis.6

Most AML are asymptomatic and incidentally found on imaging studies. As many as 40% are symptomatic and these tend to be larger in size.7

CT diagnosis of AML is usually straightforward due to characteristic levels of signal attenuation indicative of fat.8 However, other renal lesions may rarely contain adipose tissue (e.g., renal cell carcinoma, lipoma, liposarcoma, Wilms’ tumor, teratoma, xanthogranulomatous pyelonephritis, and oncocytoma).9,10 In cases of epithelioid AML with reduced fat component (hyperintense appearance on CT) the radiological distinction from renal cell carcinoma may be challenging.11 In such cases, it has been suggested that biphasic helical CT scanning is useful.11 Furthermore, engulfing of renal sinus fat is a feature that favors renal cell carcinoma.12

Our case was striking because of its large size and associated intratumoral aneurysm. While an 11 cm diameter for AML is towards the upper limit of size expected for this tumor, there have been occasionally reported instances of much larger sized AML including a case from India, which weighed 7500 g and measured 40 cm in diameter.13

Aneurysm formation in AML is not uncommon, although the large majority occur in association with tuberous sclerosis. In a study that examined AML tumor size, aneurysm size and chance of rupture, aneurysms ranged from 2–7 mm in diameter and predictors of aneurysm rupture were a tumor size of 4 cm or more and an aneurysm diameter of 5 mm or more.7 The occurrence of an aneurysm in sporadic AML, such as the present case, is rare. A further interesting aspect of this case was the radiological appearance of the intratumoral aneurysm and the corresponding histological correlation. A 5 mm diameter ruptured aneurysm was identified in the tumor with associated extensive hemorrhage. It is very likely that the rupture led to symptoms of flank pain and hematuria prompting the patient to seek medical attention.

Conclusion

We report the case of a patient with sporadic AML. The mass was the largest reported in Bahrain, to date, and was striking because it contained an intratumoral aneurysm that ruptured causing symptoms leading to the radiological diagnosis of renal mass. Furthermore, the occurrence of an aneurysm in sporadic AML is rare, as the large majority tend to be associated with tuberous sclerosis.

Disclosure

The authors declared no conflicts of interest.

references

1. 1. Fujii Y, Ajima J, Oka K, Tosaka A, Takehara Y. Benign renal tumors detected among healthy adults by abdominal ultrasonography. Eur Urol 1995;27(2):124-127.
2. 2. Casper KA, Donnelly LF, Chen B, Bissler JJ. Tuberous sclerosis complex: renal imaging findings. Radiology 2002 Nov;225(2):451-456.
3. 3. Patil AR, Chandra R, Gupta A, Thukral BB. Giant aneurysm formation in sporadic renal angiomyolipoma. J Radiol Case Rep 2010;4(6):21-27.
4. 4. Martignoni G, Pea M, Reghellin D, Zamboni G, Bonetti F. PEComas: the past, the present and the future. Virchows Arch 2008 Feb;452(2):119-132.
5. 5. Mete O, van der Kwast TH. Epithelioid angiomyolipoma: a morphologically distinct variant that mimics a variety of intra-abdominal neoplasms. Arch Pathol Lab Med 2011 May;135(5):665-670.
6. 6. Brimo F, Robinson B, Guo C, Zhou M, Latour M, Epstein JI. Renal epithelioid angiomyolipoma with atypia: a series of 40 cases with emphasis on clinicopathologic prognostic indicators of malignancy. Am J Surg Pathol 2010 May;34(5):715-722.
7. 7. Yamakado K, Tanaka N, Nakagawa T, Kobayashi S, Yanagawa M, Takeda K. Renal angiomyolipoma: relationships between tumor size, aneurysm formation, and rupture. Radiology 2002 Oct;225(1):78-82.
8. 8.JJinzaki M, Silverman SG, Akita H, et al. Renal angiomyolipoma; a radiological classification and update on recent developments in diagnosis and management. Abdom Imaging 2014 Jun;39(3):588-604.
9. Helenon O, Merran S, Paraf F, et al. Unusual fat-containing tumors of the kidney: a diagnostic dilemma. Radiographics 1997;17:129-144.
10. Strotzer M, Lehner K, Becker K. Detection of fat in a renal cell carcinoma mimicking angiomyolipoma. Radiology 1993;188:427-428.
11. Kim JY, Kim JK, Kim N, Cho KS. CT histogram analysis: differentiation of angiomyolipoma without visible fat from renal cell carcinoma at CT imaging. Radiology 2008 Feb;246(2):472-479.
12. 12.PPrando A. Intratumoral fat in a renal cell carcinoma. Am J Roentgenol 1991;156:871a.
13. 9. Taneja R, Singh DV. Giant renal angiomyolipoma: unusual cause of huge abdominal mass. J Clin Imaging Sci 2013;3:56.
