Massive hemoptysis is the most serious medical emergency and warrants swift and comprehensive evaluation of the lung parenchyma, airways, and thoracic vasculature. Anomalies of thoracic vasculature constitute an important and uncommon category as causes of hemoptysis. Multidetector computed tomography (MDCT) is the optimal imaging modality for evaluating hemoptysis. In addition to showing the lung parenchyma and airways, it allows the evaluation of the integrity of pulmonary, bronchial, and non-bronchial systemic arteries within the chest.1,2

Various congenital and acquired anomalies affect the pulmonary vasculature. Awareness of the radiologic manifestations of the disease entities and potential complications secondary to infection, vasculitis, or collateralization may aid early diagnosis.

We report the cases of three patients who presented with hemoptysis. The right pulmonary artery was affected in all three, either due to a congenital or acquired cause, and led to systemic collateralization, which resulted in hemoptysis.

Case reports

Case one

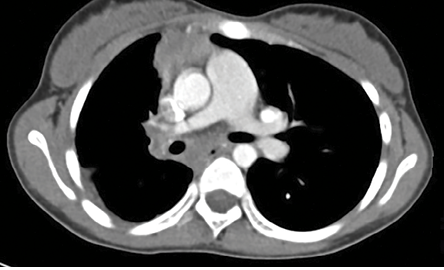

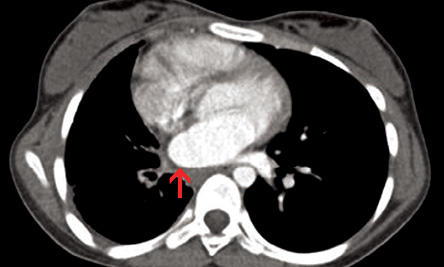

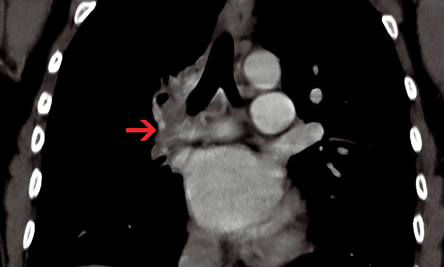

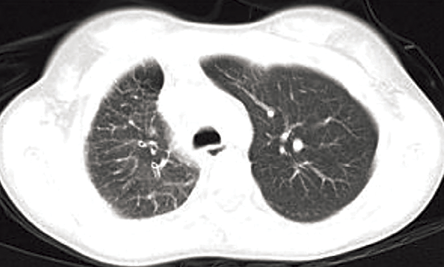

An 11-year-old female presented with history of fever that had lasted for one month and hemoptysis and cough that had lasted for three days. Her hemogram, erythrocyte sedimentation rate, and platelets were within normal limits. Chest radiograph showed small right hemithorax with ipsilateral mediastinal shift. A computed tomography (CT) scan of the chest (lung window) showed small right hemithorax and interlobular septal thickening [Figure 1]. Contrast-enhanced CT scan (mediastinal window) revealed a smooth left atrial wall at the expected location of right pulmonary veins [Figure 2] and confluent hilar and mediastinal soft tissue with tortuous collaterals along the right main bronchus [Figure 3 and 4]. The right branch of pulmonary artery was small. She was diagnosed with pulmonary venous atresia.

Case two

A 46-year-old female presented with hemoptysis. She reported coughing approximately 100ml of blood three times in the previous five days. She had no history of fever or cough. A similar episode happened six months before, which resolved spontaneously. No investigation was done at that time.

Her chest radiograph showed small right hilum and normal lung fields.

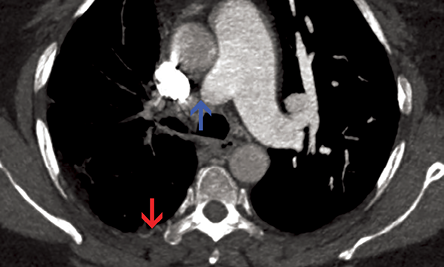

A contrast-enhanced CT of the chest was performed and revealed sudden interruption of right branch of pulmonary artery in its proximal part [Figure 5, blue arrow]. The right hilum was diminutive. Multiple tortuous systemic arteries were seen along the right bronchial tree. Irregular pleural thickening and intercostal collaterals were also seen on the right side [Figure 5, red arrow].

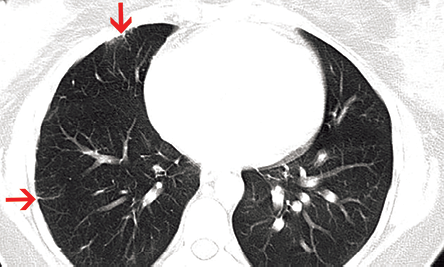

Both lungs showed mosaic attenuation and subpleural interstitial thickening, due to intercostal collaterals, was evident in the right lung [Figure 6]. Patchy ground glass haze and interlobular septal thickening was present in the posterior segment of the right upper lobe, which was likely due to pulmonary hemorrhage.

Based on these findings, the patient was diagnosed with proximal interruption of right pulmonary artery.

Case three

A 36-year-old female presented with massive hemoptysis that had lasted for two days. Following hemoptysis (approximately 150ml of blood), her cough cleared spontaneously every time. Three years previously she had a cesarean section, and she had a history of deep vein thrombosis in her right lower limb, which resolved with medication. She had no previous episodes of hemoptysis or dyspnea.

Her chest radiograph showed small right hilum and no lung changes.

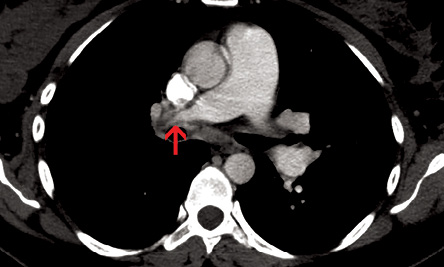

A contrast-enhanced CT of the chest revealed pulmonary arterial hypertension in the form of a dilated main pulmonary artery (35mm diameter) and proximal right pulmonary artery (20mm diameter). There was abrupt narrowing of the distal part of the right pulmonary artery with hypodense contracted thrombus in its periphery [Figure 7]. Multiple tortuous systemic arteries were seen in the mediastinum and at the hilum. Subpleural interstitial thickening was evident in the right lung secondary to collateral intercostal arteries. Both lung fields were symmetrical in size and no mosaic perfusion
was noted.

Discussion

Conditions such as bronchiectasis, chronic bronchitis, lung malignancy, tuberculosis, and chronic fungal infection are some of the common causes of hemoptysis and are easily detected using CT. The bronchial arteries are the source of bleeding in most cases.1 Actual hemorrhage usually occurs from fragile thin-walled anastomoses between distant bronchial arterial branches and pulmonary arteries that are under high systemic arterial pressure. These are located in the airway submucosa and too small to be directly visualized with CT. Conditions causing reduced pulmonary arterial perfusion, such as chronic thromboembolic disease and vasculitic disorders, lead to a gradual increase in the bronchial arterial contribution.3 In our cases, we discussed the anomalies of pulmonary vessels leading to decreased pulmonary artery pressures, bronchial artery hypertrophy, and hemoptysis.

Unilateral pulmonary vein atresia is a rare congenital abnormality that likely results from failure of incorporation of the common pulmonary vein into the left atrium. It results in persistence of the connections between the pulmonary circulation and the vitelline and cardinal venous systems and, thus, drainage into the portal vein and vena cava.3 Most children with this abnormality present with recurrent chest infections and hemoptysis. Noninvasive diagnosis of unilateral pulmonary venous atresia by CT angiography, cardiac magnetic resonance imaging, or bronchoscopy has been described in recent publications.4,5

MDCT provides accurate morphological information concerning the heart and extra cardiac vascular structures.6 The ipsilateral pulmonary artery is diminutive because of preferential pulmonary artery perfusion to the contralateral side.7 This pulmonary artery hypoplasia accounts for the arterial systemic-to-pulmonary collateral vessels. The interlobular septal thickening, bronchial wall thickening, and ground glass opacities likely reflect both pulmonary vein hypertension and
engorged lymphatics.

The unilateral absence of a pulmonary artery is another rare congenital anomaly and is frequently associated with other cardiovascular anomalies, such as tetralogy of Fallot, septal defects, right aortic arch, and persistent ductus arteriosus.8 Patients with isolated unilateral absence of the pulmonary artery have a benign clinical course. Hemoptysis occurs in only 20% of patients with this entity and can be self-limiting or life-threatening.9 The radiological features of this entity are best appreciated on MDCT, which clearly show the sudden interruption of the pulmonary artery and collaterals supplying the affected lung. The latter may be derived from bronchial, intercostal, internal mammary, subclavian, or innominate arteries.10 Secondary signs of collateral intercostal arteries such as rib notching, increased subpleural interstitial lung markings, and serrated pleural thickening may also be identified, as seen in our case. Mosaic attenuation may be seen in both lungs. The mosaic pattern in the affected lung may be related to hypoxic vasoconstriction and in the unaffected lung to over-perfusion.11

Chronic pulmonary thromboembolism is usually a consequence of incomplete thrombus resolution.12 The CT features of chronic pulmonary thromboembolism can be classified into three categories: direct pulmonary arterial signs due to thrombus, signs of pulmonary hypertension, or signs of systemic collateral supply.13 Abrupt vessel narrowing is caused by recanalization within a large thrombus or by stenosis due to an organized thrombus that lines the arterial wall.14 Bronchial arterial flow increases in response to chronic obstruction of the pulmonary arteries. In addition, transpleural systemic collateral vessels (intercostal arteries) also develop.15 A mosaic pattern of perfusion appearing as sharply demarcated regions of decreased and increased attenuation because of irregular perfusion is also usually seen.16

In our cases, we have seen that right pulmonary artery was small which led to decreased pulmonary arterial pressure and bronchial collateralization. Parenchymal abnormalities were subtle and rupture of thin walled fragile bronchial collaterals was the cause of hemoptysis. In every patient, careful analysis of thoracic vasculature provided a clue to the diagnosis and MDCT has virtually replaced the role of conventional angiography in these disease entities.

Conclusion

The anomalies of thoracic vasculature whether congenital or acquired lead to systemic collateralization and hemoptysis, which can be life threatening. Therefore, radiologists should thoroughly evaluate the mediastinal vessels with MDCT angiography in every patient presenting with hemoptysis. Although secondary CT findings in the parenchyma as well as mediastinum are similar in all three entities, careful evaluation of MDCT images can diagnose the anomaly and the patient can be managed accordingly.

Disclosure

The authors declared no conflict of interests.
