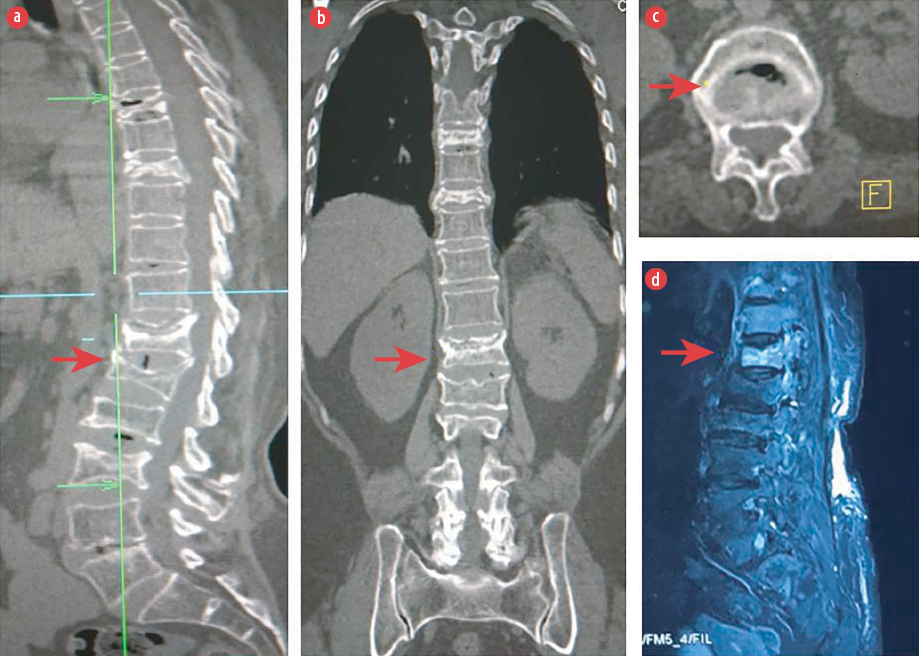

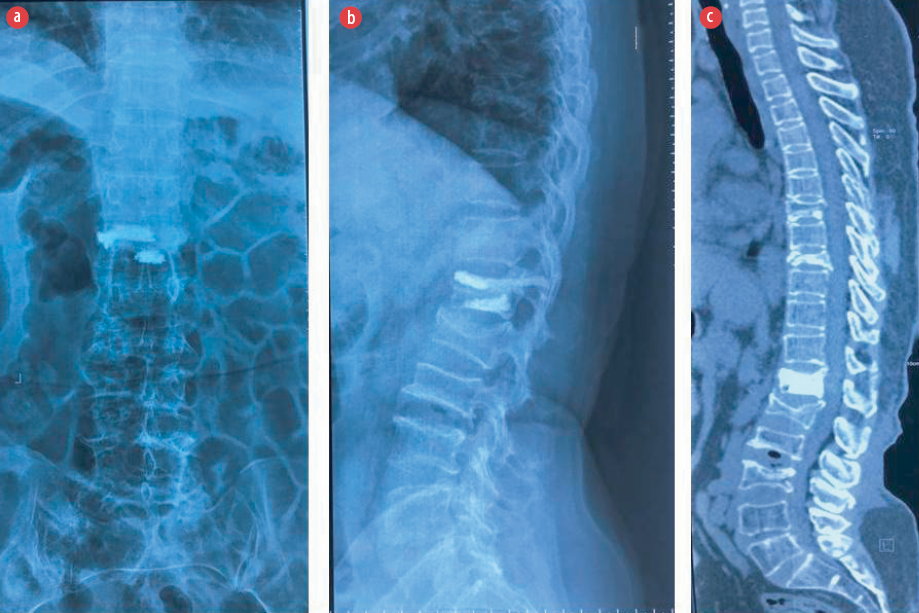

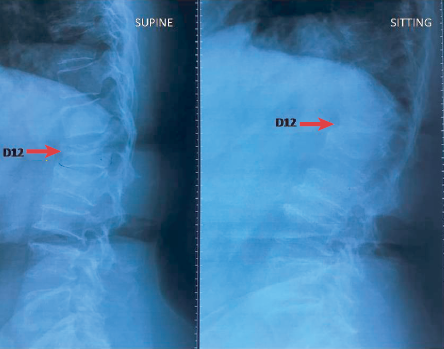

A 65-year-old female presented with chronic back pain after undergoing two months’ treatment elsewhere with little improvement. She had a history of a trivial injury some eight months earlier when she received treatment and became ambulatory. For the previous three months, she was having difficulty being supine. Her pain and discomfort were obvious. X-ray radiographs in supine and sitting postures suggested a collapse opening up at D12 level suggestive of a void [Figure 1]. Computed tomography (CT) confirmed a ‘vacuum sign’ seen on coronal and axial cuts [Figure 2]. Magnetic resonance imaging (MRI) clearly showed an edema at that particular level [Figure 2]. Laboratory test results ruled out any infection or malignancy. The patient underwent a single-level kyphoplasty (KP) under anesthesia. On the following day, her pain score (visual analog score) had tremendously improved from 8 to 1. The chest x-ray and CT scan showed satisfactory cement filling and height restoration [Figure 3]. She received anti-osteoporotic treatment and was doing well at the one year follow-up.

Question

What is the diagnosis?

a) Kummell's disease.

b) Scheuermann disease.

c) Apophyseal ring fracture.

d) Bertolotti's syndrome.

Answer

a) Kummell’s disease.

Discussion

Kummell’s disease (KD) is a late-onset vertebral osteonecrosis following a compression fracture. It was first described in 1895 by the German surgeon Herman Kummell.1 This condition may result from failure of the healing mechanism of a fracture resulting in the formation of an avascular zone below the vertebral endplate.2 It may manifest months after a trivial injury in an elderly patient having osteoporosis, in a younger person with chronic steroid use or radiation exposure, or in a known alcoholic.2,3 Patients are often mobile without neurological symptoms but mainly present with chronic and debilitating back pain of > 3 months duration. Plain lateral loading radiographs/dynamic views best illustrate the pseudarthrosis that is optimum for diagnosis.3 The pathognomonic ‘air-filled cleft’ is best demonstrated in CT, though MRI can show a ‘double line sign’ (a region of low intensity surrounded by higher intensity signal.4,5 Management of KD is by eliminating the abnormal motion at the pseudarthrosis site, which relieves pain. Operative management is less successful. Percutaneous vertebral cement augmentation by either KP or vertebroplasty provides radical and immediate pain relief in neurologically intact patients.6 Those who have cord compression features may also need stabilization and posterior decompression in addition to cement filling methods due to low healing potential of the fracture.2 However, these benign lesions must be differentiated from malignant compressive fractures. Malignant vertebral marrow involvement will show higher fractional anisotropy and lower mean diffusivity compared to the benign disease.7 Although contrast-enhanced MRI is helpful in most cases, the FDG-PET/CT is more diagnostic but limited by availability. Recently, diffusion tensor imaging has become the game-changer in segregating the benign from the malignant.

Regarding the other three (incorrect) answer choices, Bertolotti’s syndrome is a condition associated with transition vertebrae either as sacralization of the fifth lumbar vertebra or vice versa.8 Scheuermann kyphosis or Scheuermann disease is a juvenile kyphosis involving the thoracic vertebrae and rarely the lumbar vertebrae in adults with hyperkyphosis, successive three vertebral wedging up to five degrees and discogenic changes.9 Apophyseal ring fractures are rare injuries that mimic common disc herniation (though sometimes they may accompany it).10

Our patient received symptomatic treatment in form of KP along with primary management of osteoporosis. The x-rays/CT scans also show some healed vertebral fractures (no hyperintensity on T2 weighted/ STIR MRI) at multiple levels. These healed fractures are usually ‘silent’(asymptomatic), but can cause local kyphosis and if multiple levels are involved can lead to sagittal imbalance.11
