ABSTRACT

This is a case report of a 59 years old male who had a commercial non-related living renal transplantation for his end stage renal insufficiency secondary to adult polycystic kidney disease. He suffered an immediate and early post-operative bleeding, which was managed conservatively. He was presented at Sultan Qaboos University Hospital four months after his transplant with abdominal pain, nausea, loss of appetite and a rise in serum creatinine levels. Ultrasonography and angiography have shown a 4 cm false aneurysm of the transplant renal artery at the anastomotic site with the external iliac artery. Surgical exploration with resection of the false aneurysm and reanastomosis of the donor renal artery to the external iliac artery was carried out successfully with preservation of the renal allograft. This is a rare case of an extra-renal false aneurysm at the anastomotic site of the transplant renal artery to the external iliac artery four months after renal allotransplantation. Literature review on the management and outcome of false aneurysms after renal transplant was carried out.

From the ¹Department of Surgery, Vascular Unit; ²Urology Unit; ³Department of Radiology and Molecular Imaging; ⁴Department of Medicine, Nephrology Unit, Sultan Qaboos University Hospital, Muscat, Sultanate of Oman.

Received: 07 Feb 2010

Accepted: 28 Apr 2010

Address correspondence and reprint request to: Dr. Khalifa Al-Wahaibi, MD, FRCSC Consultant, General and Vascular Surgery, Department of Surgery, Sultan Qaboos University Hospital, Al-Khod, Sultanate of Oman.

E-mail : dralwahaibi@hotmail.com.

How to cite this article:

Al-Wahaibi KN, Aquil S, Al-Sukaiti R, Al-Riyami A, Al-Busaidi Q. Tranplant renal artery false aneurysm: Case report and literature review. OMJ Oct 2010; 25(4):306-310.

How to cite this URL:

Al-Wahaibi KN, Aquil S, Al-Sukaiti R, Al-Riyami A, Al-Busaidi Q. Tranplant renal artery false aneurysm: Case report and literature review. OMJ Oct 2010; 25(4):306-310. Available from: http://www.omjournal.org /fultext_PDF.aspx?DetailsID=27&type=fultext

INTRODUCTION

Approximately 10% of patients undergoing renal transplantation may suffer a medical, urological or vascular complication.^1,2 Acute tubular necrosis, acute and chronic allograft rejection and immunosuppressive medications-induced nephropathy are among the medical complications.² Urological complications include ureteral obstruction, urinoma, abscess and lymphocele formation. While vascular complications include stenosis or thrombosis of the renal artery, thrombosis of the renal or iliac veins, arteriovenous fistulae or false aneurysm formation.^1,3 Vascular complications after renal transplantation are not common but may often lead to allograft loss.⁴ False aneurysms following renal transplantation are rare, with an incidence rate of less than 1%.^5,6,7 They are either at the anastomotic site or within the renal allograft.^7,8 The existence of very small series of patients with false aneurysm after renal transplantation and isolated case reports published in current literature indicates how rare it is, hence the controversy in eliciting the etiology, occurrence, indications for repair, treatment options and prognosis of this potentially life-threatening complication.⁹

CASE REPORT

A 59 years old male, who was a known case of hypertension and end stage renal disease secondary to Adult polycystic kidney disease, previously had hemodialysis. He had traveled abroad four months prior to his current presentation and had undergone a live non-related renal transplantation in the right iliac fossa. He had suffered bleeding from the operative site immediately after the transplant surgery and then one month later, both were managed conservatively. He was presented at Sultan Qaboos University Hospital with abdominal pain, nausea and loss of appetite. On physical examination, his vital signs were normal, his abdomen was soft, his transplanted kidney was not tender and there was an audible bruit over the transplanted kidney. However, his renal function was compromised with an increase in serum creatinine (from patient baseline immediately after his transplant of 100 micromoles per liter to 250 micromoles per liter) and a decrease in glomerular filtration rate (from patient baseline immediately after his transplant of 65 ml/minute/1.73 meters square to 23 ml/minute/1.73 meters square). B-mode Ultrasonography (US) showed a hypoechoic mass with centrally anechoic lesion next to the upper pole of the renal allograft, (Fig. 1a).The maximum diameter was 4 cm. Color-Coded Doppler Sonography (CCDS) showed a pulsatile flow pattern in the central anechoic part of the lesion, (Fig. 1b). Ultrasonographic diagnosis was of a partially thrombosed false aneurysm. The origin of the false aneurysm could not be demonstrated by means of ultrasound. Subsequent angiography confirmed a 4x4 cm false aneurysm at the anastomosis of the transplanted renal artery with the right sided external iliac artery. (Figs. 2a, 2b)

There was a wide communication with the arterial lumen and insufficient proximal landing zone to deploy an endovascular stent without compromising the lumen of the external iliac artery. The thrombin injection treatment would carry high risk of distal embolization given the wide communication with the arterial lumen. He was offered an open surgical repair. After obtaining an informed consent explaining the high risk for graft loss and possibility of allograft nephrectomy, the patient was taken to the operating room.

Surgical exploration showed the aneurysmal mass at the transplanted kidney pedicle. Meticulous dissection isolated the false aneurysm from the transplanted kidney. Proximal and distal vascular control was obtained over the external iliac artery as well as the transplanted renal artery distal to the false aneurysm, (Fig. 3a). Intravenous heparin was given at a dose of 150 units per kilogram. Proximal and distal external iliac artery and the transplanted renal artery were clamped and resection of the false aneurysm was performed, (Fig. 3b). The transplanted renal artery was anastomosed primarily to the external iliac artery using a continuous non absorbable suture (Polypropylene) size 6-0. An open incisional biopsy was taken from the transplanted kidney to assess for possible ongoing allograft rejection. In the immediate post-operative period the patient was oliguric, which he subsequently recovered from. His serum creatinine improved to 140 micromoles per liter and his glomerular filtration rate improved to 50 ml/minute/ 1.73 meters square. His distal pulses on his right leg were normal. The patient was continued on immunosuppressive therapy and was discharged home on the seventh post-operative day.

Histopathology of the resected false aneurysm wall was consistent with an organized thrombus and a surrounding fibrous coat, without evidence of fungal infection. Renal allograft biopsy showed focal global sclerosis with no evidence of rejection. A post-operative Color-coded Doppler sonography (CCDS) showed patent renal allograft artery and vein. (Fig. 4)

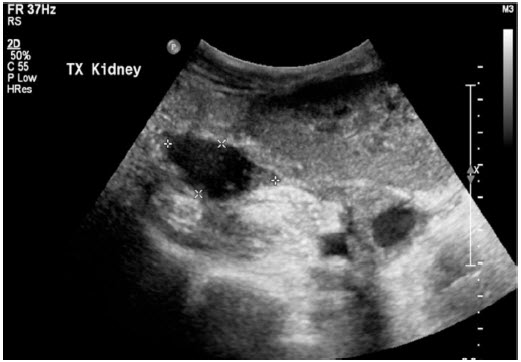

Figure 1a: B-mode Ultrasonography. A hypoechoic mass with centrally anechoic lesion next to the upper pole of the renal allograft.

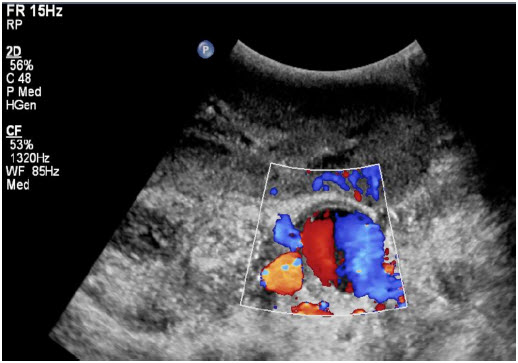

Figure 1b: Color-Coded Doppler Sonography (CCDS) showed a pulsatile flow pattern in the central anechoic part of the lesion.

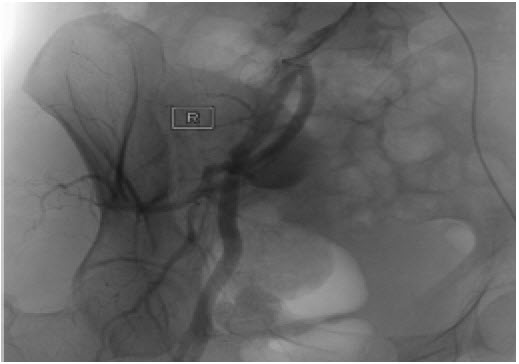

Figure 2a: Angiography has showed a 4x4 cm false aneurysm at the junction of the transplanted renal artery with the right sided external iliac artery.

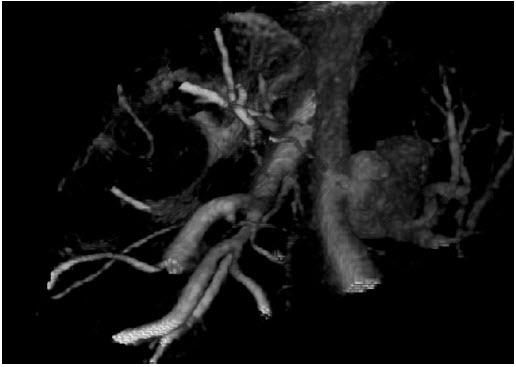

Figure 2b: 3 Dimensional Angiography reconstruction view showing the 4x4 cm false aneurysm at the junction of the transplanted renal artery with the right sided external iliac artery.

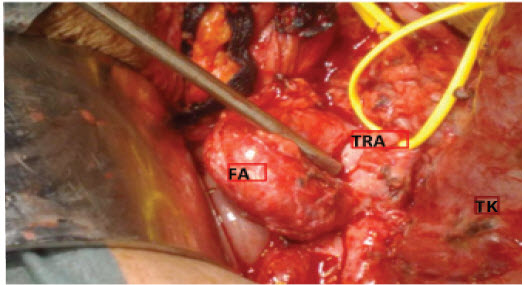

Figure 3a: Operative finding of the false aneurysm (FA), proximal and distal Vascular control over the right sided external iliac artery, vascular control over the transplanted renal artery (TRA). Transplanted Kidney (TK).

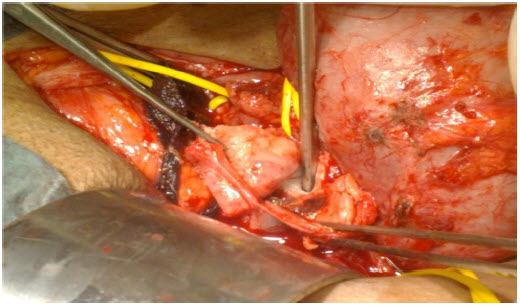

Figure 3b: false aneurysm incised and then resected.

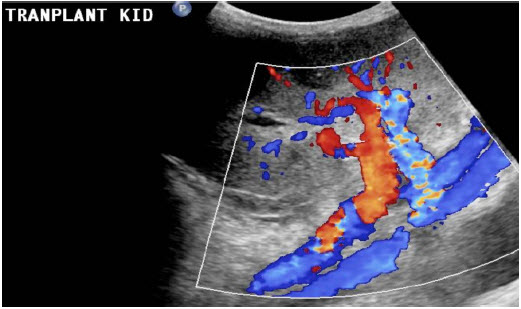

Figure 4: a post operative Color-coded Doppler sonography (CCDS) show patent renal allograft artery & vein

DISCUSSION

Chronic kidney disease is a large and growing problem in Oman, as well as worldwide. It is attributed mainly to diabetic and hypertensive nephropathies. Other causes include glomerulonephritis, autoimmune diseases, obstructive nephropathies, inherited diseases such as polycystic kidney disease, congenital malformations and repeated urinary tract infections. With advanced stage of the chronic kidney disease, most patients will require substitutive treatment such as hemodialysis or peritoneal dialysis to survive.

Renal Transplantation is the treatment of choice for patients with end-stage kidney disease. In Oman, renal transplantation is done as a living related donation. Cadaveric renal transplantation is not available due to the lack of a national organ donation program. Few patients travel abroad to have commercial kidney transplantation. With increasing number of renal transplant patients, there is definitely an increase in associated complications. Vascular complications are infrequent but are an important cause of allograft loss. Different studies have shown a range of 3 to 15% occurrence of vascular complications after renal transplantation.^10,11 They include transplant renal artery stenosis, transplant renal artery thrombosis, transplant renal vein thrombosis, hematomas, extra-renal false aneurysms and biopsy-induced arteriovenous fistulas and intra-renal false aneurysms. Early detection and prompt surgical or radiological intervention of these complications can salvage most of the renal allograft.^4,10

The occurrence of vascular complications were noticed to be more frequent in recipients of cadaveric donor renal transplantation compared to recipients of living donor renal transplantation, and more frequent with renal allografts with multiple renal blood vessels (i.e. more than one artery or one vein) compared to allografts with a single artery and vein.¹² Extra-renal false aneurysms are rare vascular complications accounting for less than 1%, but are potentially devastating and can lead to allograft loss due to the risk of rupture.^5,6,10  Extra-renal false aneurysm are usually located at the anastomotic site, and are commonly caused by poor surgical technique or perivascular infection. They can also be as a result of a defective suture technique, suture rupture, anastomotic leakage, vessel wall ischemia or arterial dehiscence caused by local infection.^13,14,15,16 Intra-renal false aneurysm can occur at the arcuate arteries following needle biopsy or as a result of mycotic infection.^17,18

There are no experimental or clinical data to suggest an immunological cause for extra-renal false aneurysms in transplant patients, while there are few reported cases of intra-renal small false aneurysms in association with immunologic factors such as acute or chronic rejection. Due to the small number of reported cases, immunologic factors as a pathophysiology for formation of false aneurysms in transplant patients remains as a hypothesis which needs to be proven.^14,19,20 The etiology of false aneurysms at the donor renal–external iliac artery anastomosis is multifactorial and usually results in high rates of transplant nephrectomy.²⁰

Patients with false aneurysms after their renal transplant are usually asymptomatic and they are diagnosed incidentally.^20,21 Few are reported to present with fever, anemia, compression of adjacent structures, hypertension, functional impairment, graft loss and life threatening hemorrhage due to acute rupture.^{5,10,14,15,19,20,22-25} There are no identified physical findings specific to these false aneurysms. Physical examination should identify any existing tenderness, pulsatile masses, thrill or bruit. There is no documented existing size for developing symptoms. One can expect that the size of the false aneurysm is a direct factor to predict risk of rupture as well as other factors such as the rate of expansion or growth, the presence of active blood flow in the false aneurysm, weakness of the wall and existence of trauma, or radial force on the lesion. From the review of literature, there is no identified diameter to predict the risk of rupture of these rare lesions.

Different diagnostic tools have been used to identify false aneurysms of transplanted renal artery. Color flow Doppler and duplex Doppler scanning readily recognizes them. False aneurysm appears as a simple or complex cyst on B mode ultrasound. Color Doppler shows intracystic blood flow and spectral analysis would show any co-existing arteriovenous fistula with increased arterial and venous flow, with high velocity and low resistance.^10,26

Multi slice Computed topography angiography, Magnetic resonance angiography or catheter directed conventional angiography can be used to confirm the findings of ultrasound before embarking on treatment modality. Conventional angiography carries the additional benefit of intervention. Superselective transcatheter embolization can be used to treat any identified arteriovenous fistulae or small favorable false aneurysms.²⁷ Intravascular graft stenting can be used for extra-renal false aneurysms with suitable anatomy.^10,28

The indications for repair of false aneurysm and management options are at present subject to debate.²⁰ Life threatening hemorrhage due to acute rupture will require an urgent intervention to save the lives of patients, the allograft is definitely jeopardized and transplant nephrectomy might inevitably be needed.¹⁰  Recent reports advocate that symptomatic false aneurysms, large size (larger than 2.5 cm), presence of infection, progressive enlargement and impending rupture are indications for repair.^14,17,20 Asymptomatic small false aneurysms can be managed conservatively with regular monitoring.⁶

Open surgical repair, endovascular repair and ultrasound guided percutaneous thrombin injection are the current reported treatment options for managing extra-renal false aneurysms complicating renal transplantation. Open surgical repair includes the surgical resection of the false aneurysm and the subsequent arterial reconstruction with patch angioplasty,²⁹ reanastamosis,²⁵ or an allograft autotransplantation.²⁰ An interposition graft or an extra-anatomic reconstruction following false aneurysm resection has been reported to lead to graft loss. ²³

Endovascular repair has become a more attractive treatment option for extra-renal anastomotic false aneurysms and has gained popularity during the last decade.^10,20,28 It excludes blood flow into the false aneurysm by indoluminal stent deployment, therefore reducing the risk of rupture.²⁹ Certainly it requires anatomic criteria for proximal and distal landing zones. Endovascular stenting of the external iliac artery with renal transplant artery exclusion can be considered in emergency situations of acute rupture with adjunctive percutaneous drainage of the retroperitoneal hematoma or subsequent open surgical drainage and transplant nephrectomy once the patient’s condition stabilizes.^20,30,31

Ultrasound-guided percutaneous thrombin injection (USG-PT) has been reported as an efficient and secure treatment option given the false aneurysm is accessible and not associated with infection.^32,33 Also, it has been described in the treatment of a large anastomotic false aneurysm after failure of kidney transplant.³⁴ Complications of thrombin injection are reported as rare, they include distal arterial embolization,³⁵ and anaphylaxis reaction,³⁶ and generalized urticaria,³⁷ after using bovine thrombin.

In the studied patient, it was important to intervene as the false aneurysm was 4 cm in diameter and the patient’s renal function was compromised. There was no sufficient proximal landing zone for endovascular stenting and the false aneurysm has a wide communication with the external iliac artery; which carries a high risk of distal embolization in case of using ultrasound-guided percutaneous thrombin injection (USG-PT). Our aim was to save the allograft which was achieved, and there was no need for allograft nephrectomy.

CONCLUSION

Though rare, the development of an extra-renal false aneurysm of the transplant renal artery at the anastomotic site with the external iliac artery can carry a potentially devastating loss of allograft and the need for allograft nephrectomy. To date, there are no large series to define the exact etiology, natural history, management options or outcome of such complication. We present a patient with this rare complication which was diagnosed and successfully managed with an open surgical reconstruction. Clinical, biochemical as well as ultrasonographic follow-up examination confirmed successful therapeutic management of the patient. Less invasive endovascular techniques offer a new therapeutic option in this challenging scenario. We think that an open surgical reconstruction of a renal artery aneurysm, if feasible, is a safe and a durable procedure to save the renal allograft. We advocate a high index of suspicion, early clinical diagnosis and careful patient selection to a treatment option for better outcome of allograft and patient survival.

ACKNOWLEDGEMENTS

The authors reported no conflict of interest and no funding was received on this work.
