Mosquito-borne diseases are one of the most important health problems in the world.1 At least 3531 species of mosquitoes (Culicidae, Diptera) including 112 genera have been reported in the world.2 Culex genus is classified into 26 subgenera and 769 species.3 Culex pipiens is distributed in tropical and subtropical regions such as Africa, Asia, Australia, and the tropical islands. In addition to human biting, they transmit numerous important diseases to humans. They include agents of parasitic diseases such as Wuchereria bancrofti, Brugia malayi, Brugia timori and the important viral disease agents such as West Nile virus (WNV), Sindbis virus, Japanese encephalitis, St. Louis, Western Horse Encephalitis, Rift Valley Fever (RVF), and Oropouche fever.4–6 WNV is the re-emerging pathogen which threatens human health.7 The agent of West Nile fever belongs to the genus Flavivirus transmitted by Culex mosquitoes.8 West Nile fever was reported for the first time in Uganda in 1937.9 In Iran, WNV has been reported in several regions, especially central, southwestern, and northern Iran,10 with the infection rate reported to be 1.3–5%.10–12 Many studies have been carried out on the distribution of mosquitoes, especially larvae and distribution of Culex genus adults or larvae in different parts of Iran.13–16 Various studies conducted on mosquitoes in the northwest of Iran, including Ardabil province have reported a high frequency of Culex species.17–19 Infection with WNV has not been reported in Ardabil province. However, Dirofilaria infection with Culex has been reported in this province.20 Determining the distribution of vectors based on the Ecological Niche Model (ENM) can serve as a guideline to understand the ecology and distribution of diseases. It also calls for accurate planning to control and prevent this disease, which has been implemented in high-risk areas.21 MaxEnt is one of the most important tools for determining the ENM of one or more species by using environmental data while predicting the probability of the presence of species in different places.22 Our study sought to predict the distribution of WNV vectors namely, Cx. pipiens larva, using ENM in Ardabil province in northwest of Iran.

Methods

Ardabil province is located at 38.2514N and 48.2973E in the northwest of Iran, sharing a common border with the Republic of Azerbaijan to the north. The province has an area of 17 953 square kilometers with 10 cities and a population of 1.27 million. About two-thirds of the province consists of mountainous areas with high altitude while the rest are flat areas. The northern region of the province (Moghan plain) has a low altitude and a relatively warm climate, with the central and southern regions having cold climates [Figure 1].

We randomly selected 46 locations to collect larvae, which occurred twice monthly during seasonal activity of mosquitoes. Larval sampling was carried out by the dipping method (350 mL dipper) from January to December 2017 with the samples captured from May to November. Sampling was carried out from different parts in each habitat, with 10 dipping loads in each habitat. The larvae were stored in a lactophenol solution, and after about a week they became transparent so that microscopic slides were made using a Faure’s medium. The third- and fourth-instar larvae were identified using the appropriate identification keys.23–27

For modeling and determining the ENM, WNV vectors were analyzed using MaxEnt 3.3 software. To predict the distribution of Cx. pipiens with a presence probability of more than 70%, the maps of 23 climatic and environmental factors were used, which were taken at a resolution of 30 m/s from the website (http://www.worldclim.org/bioclim.htm) and Modis satellite [Table 1]. In these maps, the areas with a high probability of this species were marked with red, and areas with low presence were identified with green. Jackknife and crew analysis were used in MaxEnt to investigate the effects of environmental and climatic variables on Culex species distribution and consideration of its ecological niche. This model can be used to evaluate the location of the samples’ breeding places and their frequency in one place. The best breeding place and habitat for the species can be determined by this model.28

Results

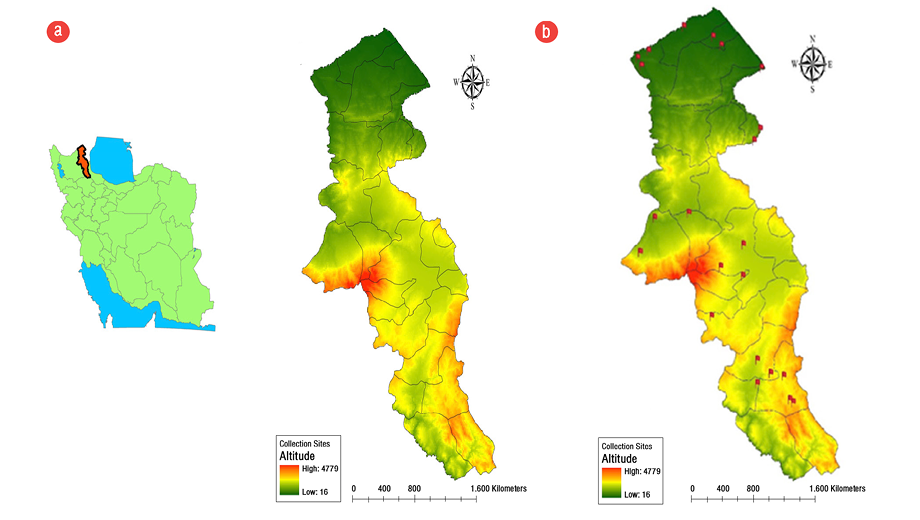

Out of 2000 collected larvae from 46 collection sites in Ardabil province [Figure 1a], 1789 (89.5%) were identified as Culex larvae. Seven species of Culex genus were collected from 22 location sites [Figure 1b] and identified as follows: Cx. pipiens (71.5%), Cx. modestus (2.8%), Cx. theileri (16.8%), Cx. hortensis (6.6%), Cx. perexiguus (1.0%), Cx. tritaeniorhynchus (0.8%), and Cx. mimeticus (0.4%). Cx. pipiens was collected with a high frequency in all the counties, especially in northern (21.3%) and southern parts (12.9%) of the province while Cx. mimeticus was collected with a low frequency in Ardabil and Parsabad counties [Table 2]. The maximum number of larvae of Culex mosquitoes was collected from Parsabad (27.2%), and the minimum was collected from Namin (2.0%) counties. More than 80% of the collected samples were from permanent habitats. The other physical characteristics of its breeding places, such as habitats with vegetation, stone or cement bed type, transparent water status, semi-shade, and natural habitat are listed in Table 3.

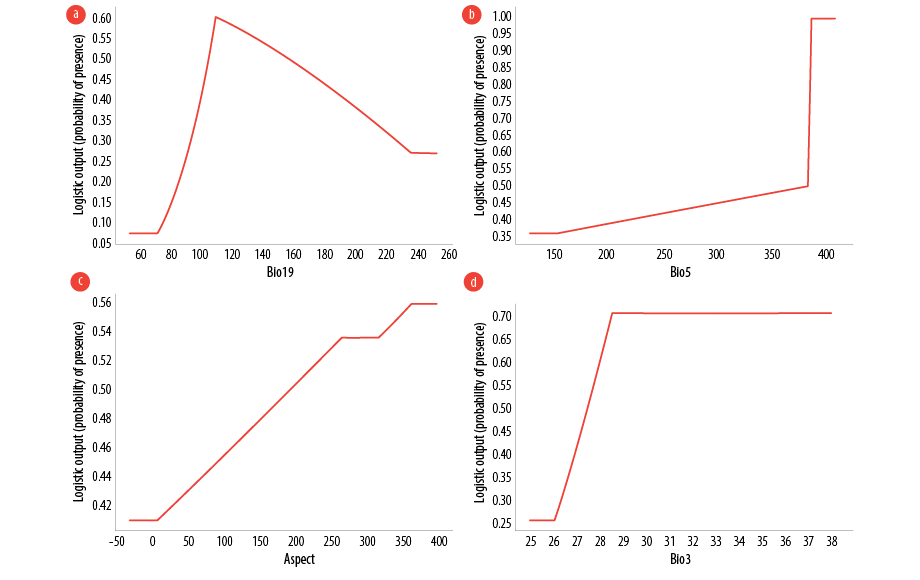

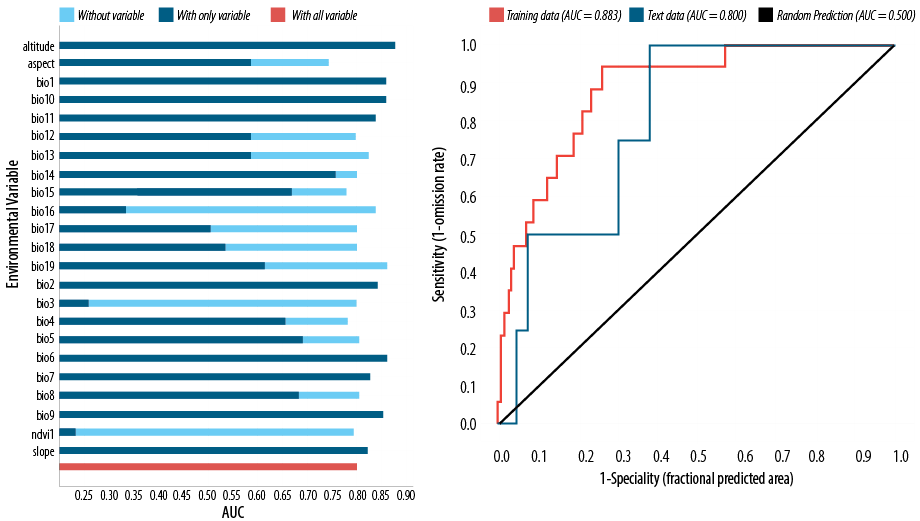

The ENM showed that the following factors had the greatest impact on the ecological niche of Cx. pipiens larvae: precipitation of coldest quarter (Bio19; 21.9%), maximum temperature of warmest month (Bio5; 21.2%), slope of the area (17.7%), precipitation of wettest quarter (7.0%), direction of slope (Aspect; 6.9%), and isothermality (Bio3; 6.8%) [Table 1 and Figure 2]. Whereas the jackknife test showed that the annual temperature range (Bio7) was the highest predictor of Cx. pipiens larvae in the north and south of Ardabil province. With the increase of rainfall (from 80 to 110 mm) and annual temperature ranges (increasing from 1.5 to 3.5 oC), the density of larvae in their habitats had also increased [Figure 3]. The results of the MaxEnt model indicated that the most ecologically suitable areas of Cx. pipiens larvae occurrence were identified in two hotspots in northern and southern Ardabil. The northern hotspot is the largest area comprising three counties of Parsabad, Garmi, and Bilehsavar. This area is located on the borderline of Iran and the Republic of Azerbaijan [Figure 4]. Moreover, the receiver operating characteristic/area under the curve (ROC/AUC) index for Cx. pipiens larvae in the ENM was 0.88.

Discussion

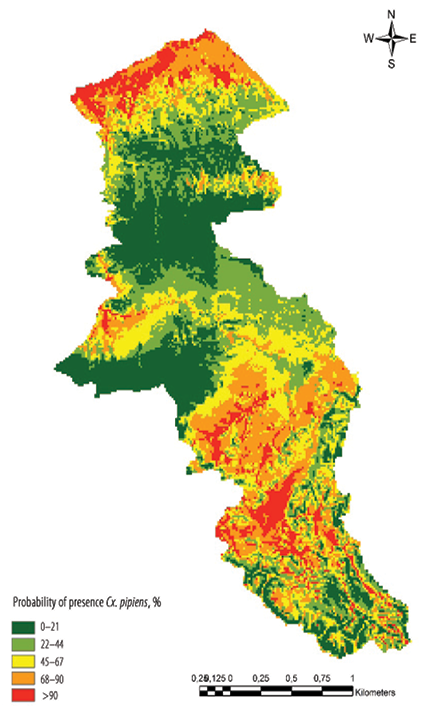

Two large areas in the northwest Iran constitute a suitable habitat for Cx. pipiens larvae. Therefore, studies can be carried out to delve into the possible infection of WNV in mosquitoes and humans in this region. For the first time in the northwest of Iran, this study determined ENM for seven mosquitoes’ larvae, which can be extended to other vectors. Previous studies have determined the ENM for leishmania infantum in humans (the agent of visceral leishmaniasis in Iran) and its vectors.29,30 However, there is a dearth of studies on ENM for mosquito larvae. In one research in Chile, Cx. pipiens modeling predicted that shallow and transparent water comprised suitable habitats for larvae and temperature was reported to be among the most effective factors.31 Likewise, most of the larvae were collected from transparent water in this study. Studies of modeling niche ecology have been carried out mostly on adult mosquitoes. Annual temperature range, precipitation of coldest quarter, maximum temperature of warmest month, slope and precipitation of driest quarter were the most important factors influencing the distribution and density of Cx. pipiens larvae. In modeling for Cx. pipiens for adults in America, it was found that non-forest regions with low vegetation coverage are appropriate for this species.32 In Kenya, the results of modeling RVF vectors (Cx. quinquefasciatus, Cx. univitattus, Mansonia africana, and M. uniformis) using MaxEnt indicated that soil type, rainfall in dry seasons, seasonal rainfall, and isothermal process had the greatest impact on the vectors.33 There is a plethora of studies and modeling carried out on West Nile vectors in the world. In one study about the effect of climate change on WNV vectors in USA in 2013, it was found that the increase in seasonal temperature and rainfall affected the frequency of Cx. pipiens and Cx. Quinquefasciatus34 or in Florida, rain in warm and cold months of the year was reported to be the most important factor impacting Cx. nigripalpus and Cx. Quinquefasciatus.35 Of the numerous studies on fauna and ecological characteristics of the larvae habitat done in Iran, some have been carried out in western Iran and West Azarbaijan province. In these studies,14,36–38 the number of collected Cx. pipiens larvae was higher than other that of mosquito larvae like our findings, with the higher prevalence of Cx. pipiens larvae. However, in another study in the southeast of Iran,39 Cx. perexiguus was found in the greatest abundance. The results of this research and their comparison with other studies show that Culex mosquitoes are also distributed in different parts of Ardabil province, which are like other regions of Iran. These vectors can transmit diseases to humans if there is a WNV cycle in this area.

Conclusion

Culex mosquitoes as the WNV vectors have a diversity of species in the Southwest of Iran. In addition, two large areas were found as ecological niches of larvae of Cx. pipiens, which call for more studies on infection in adult Cx. pipiens and their hosts in these regions.

Disclosure

The authors declare no conflict of interest. This research was financially supported by the Ardabil University of Medical Sciences, Iran (project number: 9502).

Acknowledgements

The authors are grateful to the health staff of Ardabil Health Centers for helping in the field activities.
