Septal myocardial infarction is commonly developed with anterior myocardial infarction because the feeding artery of the ventricular septum is a branch of the left anterior descending (LAD) coronary artery. Only a few cases of isolated septal myocardial infarction have been reported,1-4 and available data on this condition are limited. We experienced a case of isolated septal myocardial infarction, in which myocardial perfusion-metabolism mismatch, as assessed by nuclear imaging, was useful in determining the site of the small myocardial infarction.

Case report

A 46-year-old man was admitted to Matsushita Memorial Hospital, Osaka, Japan because of an abnormal electrocardiogram. The patient had noticed exertional chest discomfort for a few months, but did not seek medical care because his symptoms improved with rest and had not changed in frequency or severity over time. One day before admission, he had a 30-minute episode of chest discomfort at rest in the morning. The next day, his chest symptoms reportedly recurred during rest in the morning and lasted for approximately one hour. The patient visited his physician in the afternoon and was found to have an abnormal electrocardiogram. He was transferred to the emergency room of the hospital, when his symptoms had already disappeared. The patient had a history of hypertension but had taken no drugs. He was a current smoker with a 25 pack-year history.

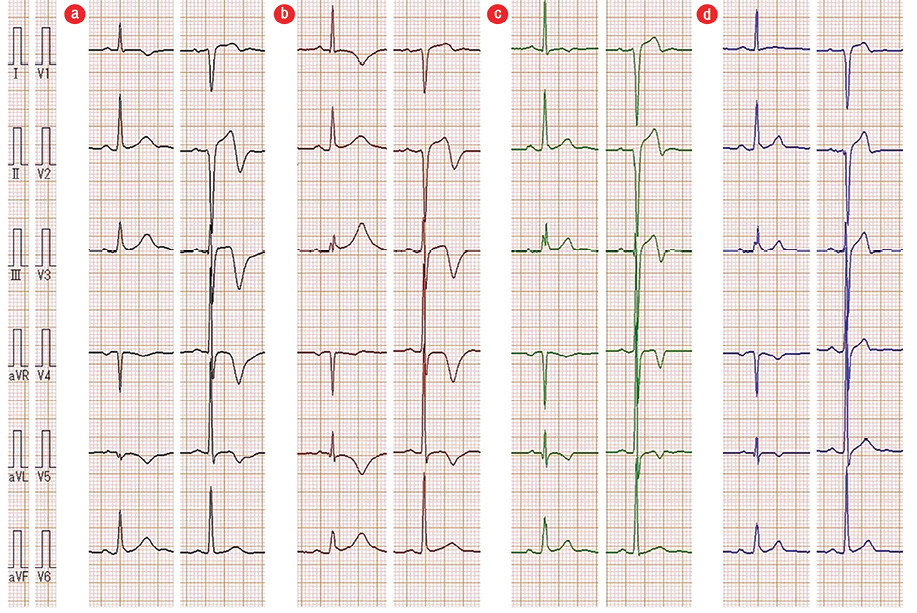

His physical examination was normal, other than a blood pressure of 189/130 mmHg. An electrocardiogram showed normal sinus rhythm, a heart rate of 65 beats per minute, ST-segment elevations in V1 and V2, and negative T waves in anterior and lateral leads [Figure 1]. His chest radiograph was unremarkable. His troponin T level was 1.74 ng/mL (reference, < 0.1 ng/mL). Echocardiography demonstrated borderline abnormalities of wall motion in the ventricular septum. A diagnosis of acute myocardial infarction was made, although the infarcted area remained undetermined.

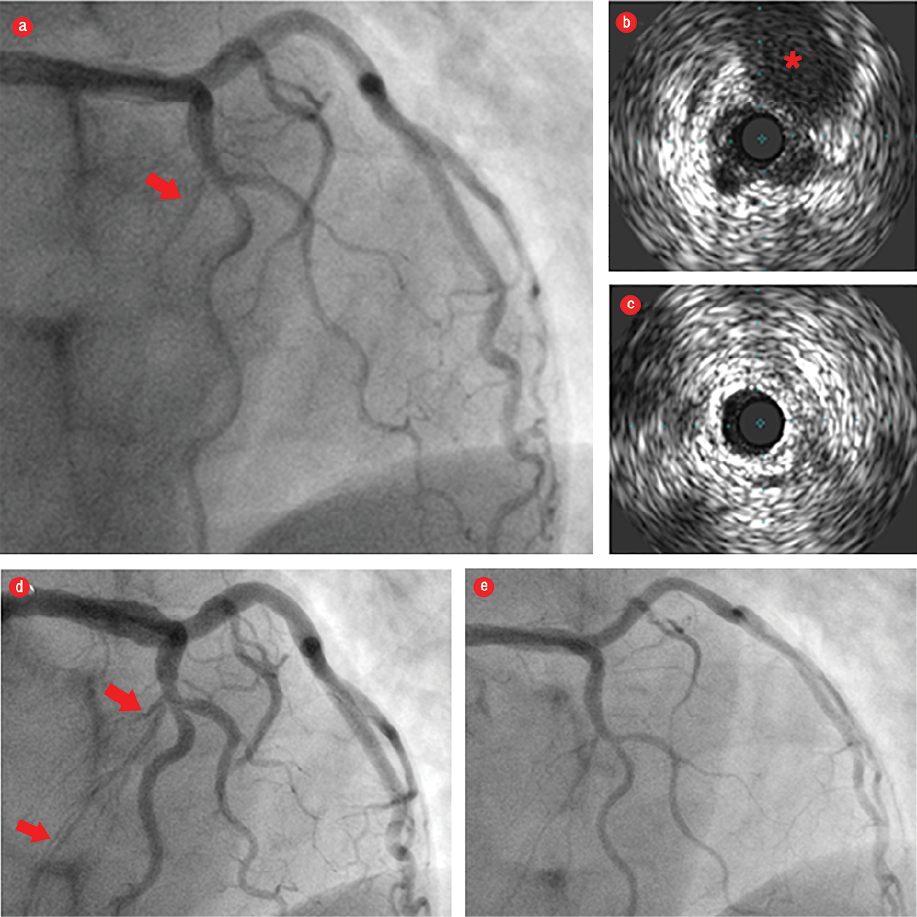

Intravenous administration of isosorbide dinitrate, followed by heparin (5000 units), did not alter his electrocardiogram. Emergency coronary angiography, which was performed after initiation of aspirin (200 mg) and clopidogrel (300 mg), revealed no significant stenosis with a delayed flow in the second septal branch of the LAD [Figure 2a]. Intravascular ultrasound was done in the second septal branch for further examination because the delayed flow in the second septal branch of the LAD did not improve after administration of intracoronary isosorbide dinitrate, intravascular ultrasound of the LAD, and inserting a wire into the septal branch. Intravascular ultrasound showed a mild to moderate amount of plaque burden in the proximal portion of the septal branch without evidence of plaque rupture [Figure 2b], whereas no atherosclerosis was observed in the mid- to distal portions [Figure 2c]. No balloon angioplasty or stent implantation was required because the flow delay in the septal branch disappeared after the intravascular ultrasound procedure [Figure 2d].

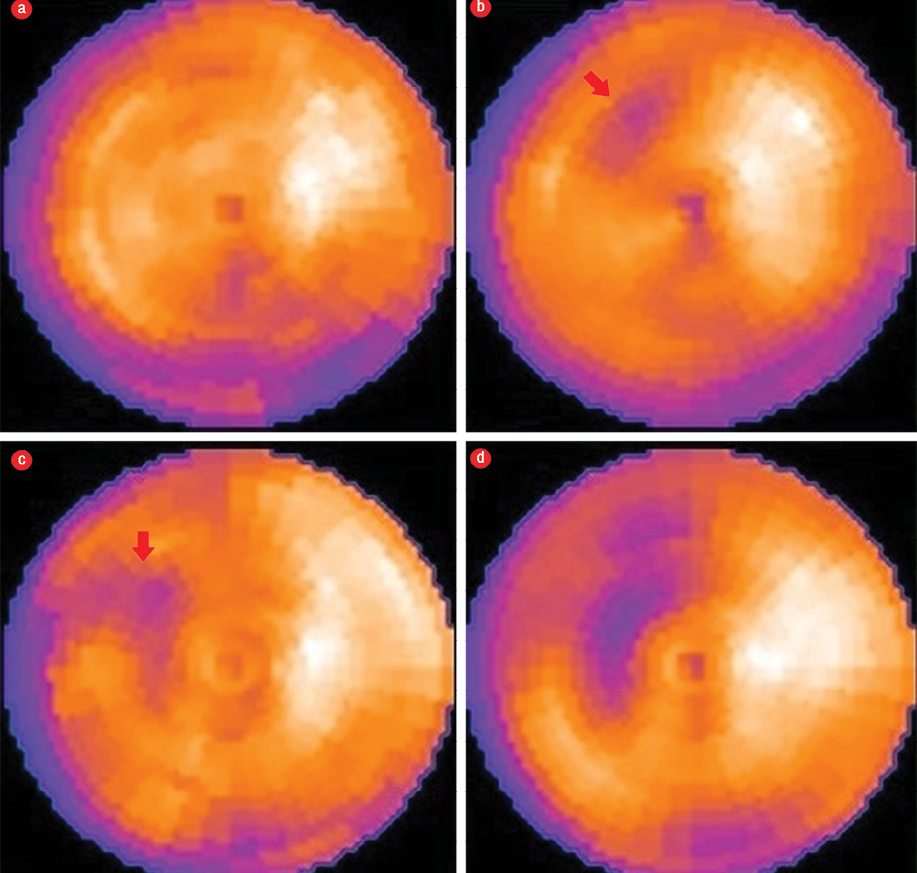

Four days after admission, we performed myocardial perfusion and fatty acid metabolism assessment with thallium-201 and iodine-123-beta-methyl-p-iodophenyl-pentadecanoic acid (I-123-BMIPP). Thallium-201 (111 MBq) and I-123-BMIPP (111 MBq) were injected intravenously at rest, and 36 images over a 180-degree anterior arc were obtained five minutes or three hours after tracer injections with a digital gamma camera, equipped with a low-energy, high-resolution, and parallel-hole collimator. The acquisition lasted 50 beats per projection, was stored in a matrix of 64 × 64 pixels, and the images were reconstructed using a Hanning filter without attenuation or scatter correction. The bull’s-eye map with thallium-201 demonstrated mildly reduced tracer uptake in the mid-septal region on the delayed images, whereas on I-123-BMIPP, the same reduction was observed in the early images with tracer washout in the delayed images [Figure 3].

The patient was diagnosed with isolated septal myocardial infarction. His clinical course was uneventful, and his peak level of creatine kinase was 823 U/L (measured on admission). Electrocardiographic abnormalities gradually improved, although lack of septal q waves in V5 and V6 persisted [Figure 1]. Follow-up angiography, performed six months later, showed good blood flow in the second septal branch of the LAD [Figure 2e]. The patient was doing well with daily aspirin 100 mg and statins for more than two years after discharge.

Discussion

The site of myocardial infarction was not easy to determine in our case. Electrocardiographic, echocardiographic, and angiographic findings were consistent with septal myocardial infarction, but not definitive enough to make a diagnosis of isolated septal myocardial infarction. This may be explained by anatomical variations of the septal branch; in our case, the culprit lesion (i.e., the second sepal branch of the LAD) was not large. Electrocardiographic changes are reported to vary in patients with septal myocardial infarction.1,2,5 By contrast, nuclear imaging with thallium-201 and I-123-BMIPP (to determine perfusion-metabolism mismatch) was informative despite the relatively small amount of infarction and the uncommon site limited to the mid-septum.

Myocardial perfusion imaging at rest was useful in assessing myocardial viability. The good uptake of thallium-201 on the initial images in our case suggests that severe damage was unlikely in the ventricular septum. Such small damage can also be undetectable on cardiac magnetic resonance, although the radiation-free technique is reported to be useful in the diagnosis of isolated septal myocardial infarction.3,4 Nevertheless, we observed mildly reduced tracer uptake on the delayed images of thallium-201 in our case. This finding, so-called reverse redistribution, has been associated with less severe damage, such as nontransmural myocardial infarction, patent infarct-related coronary artery, and myocardial salvage.6,7 Given that the determinant of thallium-201 redistribution is a balance between its influx and efflux,8,9 the latter seemed predominant in our case. This phenomenon is due, in part, to a rapid recovery of thallium-201 washout rate after the improvement of coronary perfusion pressure,10 although the kinetic behavior of thallium-201 in biological tissue is not fully understood.

Myocardial imaging with I-123-BMIPP indicated impaired fatty acid metabolism in the mid-septum, findings consistent with myocardial damage due to reduced flow in the septal branch of the LAD. It is worth noting that myocardial uptake of I-123-BMIPP, as compared with thallium-201 uptake, was more severely impaired in our case. These findings are known as a perfusion-metabolism mismatch,11,12 and are explained by the ability of the myocardium to use not only free fatty acids but also other substrates as an energy source — such as glucose, lactate, or ketones — to protect the heart from direct energy deprivation.13,14 Among these alternative sources, glucose is a major energy substrate in the presence of severe coronary disease.15,16 Thus, it is reasonable to consider that a switch from free fatty acid metabolism to glucose metabolism had developed in our case due to blood flow reduction in the septal branch of the LAD. On the delayed images of I-123-BMIPP, increased washout was observed in the mid-septal region. Although the clinical significance of delayed images of I-123-BMIPP remains to be elucidated, the relation between washout rates of I-123-BMIPP and improvement of ventricular function was observed in patients with successfully reperfused ST-segment elevation myocardial infarction.17

It is intuitive to consider that the mechanism of pure septal infarction in our case was due to the semi-occluded lesion of the proximal portion in the second septal branch of the LAD. Intravascular ultrasound exhibited progressed atherosclerosis at the culprit site, but no plaque rupture was detected in our case. It remains controversial whether rupture or erosion of the plaque surface was attributable to the onset. Given that his symptoms were associated with conditions at rest in the morning, coronary artery spasm should also be considered as a possible trigger for the myocardial infarction; however, we did not perform a spasm provocation test. Spontaneous coronary artery dissection can cause an isolated septal myocardial infarction,4 but the possibility is less likely in our case because of the absence of dissection on angiographic and intravascular ultrasound images.

Conclusion

We experienced a case of isolated septal myocardial infarction, in which the diagnosis was confirmed by perfusion-metabolism mismatch on nuclear imaging. Given the rarity of this condition, clinical data should be accumulated for the diagnosis and treatment.

Disclosure

The authors declared no conflicts of interest. No funding was received for this study.

references

1. 1. Honda T, Okayama H, Tamura A, Kodama K, Suetsugu M, Doiuchi J, et al. A case of clinically diagnosed pure septal infarction. Jpn Circ J 1991 Oct;55(10):966-971.
2. 2. Tani S, Watanabe I, Nagao K, Anazawa T, Kawamata H, Tachibana E, et al. Pure ventricular septal myocardial infarction in a young man with coronary artery ectasia. Int Heart J 2006 Jan;47(1):131-137.
3. 3. Tomcsanyi J, Bozsik B, Zsoldos A, Simor T. Isolated spontaneous septal myocardial infarction. J Electrocardiol 2012 May-Jun;45(3):280-282.
4. 4. Chasseriaud W, Tearney GJ, Montaudon M, Fialon B, Coste P, Gerbaud E. Isolated septal myocardial infarction due to spontaneous coronary artery dissection. Int J Cardiol 2016 Jun;212:259-261.
5. 5. Saito D, Ueeda M, Yamada N, Hina K, Watanabe H, Mima T, et al. The QRS complex of the standard 12-lead electrocardiogram in septal myocardial infarction. Jpn Circ J 1988 Nov;52(11):1268-1276.
6. 6. Weiss AT, Maddahi J, Lew AS, Shah PK, Ganz W, Swan HJ, et al. Reverse redistribution of thallium-201: a sign of nontransmural myocardial infarction with patency of the infarct-related coronary artery. J Am Coll Cardiol 1986 Jan;7(1):61-67.
7. 7. Faraggi M, Karila-Cohen D, Brochet E, Lebtahi R, Czitrom D, Feldman LJ, et al. Relationship between resting 201Tl reverse redistribution, microvascular perfusion, and functional recovery in acute myocardial infarction. J Nucl Med 2000 Mar;41(3):393-399.
8. 8. Okada RD. Kinetics of thallium-201 in reperfused canine myocardium after coronary artery occlusion. J Am Coll Cardiol 1984 May;3(5):1245-1251.
9. 9. Liu P, Burns RJ. Easy come, easy go: time to pause and put thallium reverse redistribution in perspective. J Nucl Med 1993 Oct;34(10):1692-1694.
10. 10. Grunwald AM, Watson DD, Holzgrefe HH Jr, Irving JF, Beller GA. Myocardial thallium-201 kinetics in normal and ischemic myocardium. Circulation 1981 Sep;64(3):610-618.
11. 11. Hashimoto A, Nakata T, Tsuchihashi K, Tanaka S, Fujimori K, Iimura O. Postischemic functional recovery and BMIPP uptake after primary percutaneous transluminal coronary angioplasty in acute myocardial infarction. Am J Cardiol 1996 Jan;77(1):25-30.
12. 12. Ito T, Tanouchi J, Kato J, Morioka T, Nishino M, Iwai K, et al. Recovery of impaired left ventricular function in patients with acute myocardial infarction is predicted by the discordance in defect size on 123I-BMIPP and 201Tl SPET images. Eur J Nucl Med 1996 Aug;23(8):917-923.
13. 13. Lopaschuk GD, Collins-Nakai RL, Itoi T. Developmental changes in energy substrate use by the heart. Cardiovasc Res 1992 Dec;26(12):1172-1180.
14. 14. Lopaschuk GD, Ussher JR, Folmes CD, Jaswal JS, Stanley WC. Myocardial fatty acid metabolism in health and disease. Physiol Rev 2010 Jan;90(1):207-258.
15. 15. Nordin C. The proarrhythmic effect of hypoglycemia: evidence for increased risk from ischemia and bradycardia. Acta Diabetol 2014 Feb;51(1):5-14.
16. 16. Calvani M, Reda E, Arrigoni-Martelli E. Regulation by carnitine of myocardial fatty acid and carbohydrate metabolism under normal and pathological conditions. Basic Res Cardiol 2000 Apr;95(2):75-83.
17. Biswas SK, Sarai M, Yamada A, Toyama H, Motoyama S, Harigaya H, et al. The washout rate of (123)I-BMIPP and the evolution of left ventricular function in patients with successfully reperfused ST-segment elevation myocardial infarction: comparisons with the echocardiography. Int J Cardiovasc Imaging 2010 Feb;26 (Suppl 1):155-164.
