Arrhythmogenic right ventricular cardiomyopathy (ARVC) is a genetically mediated cardiomyopathy characterized by fibro-fatty degeneration and aneurysmal dilatation of the right ventricle (RV) myocardium with variable degrees of left ventricular (LV) involvement. The condition is transmitted as an autosomal dominant disease and predisposes to exertional ventricular tachycardia (VT).1 There is an autosomal recessive form of the disease known as Naxos disease, which is distinguished by palmoplantar hyperkeratosis.
ARVC is a recognized cause of sudden cardiac death (SCD) in young athletes. Descriptions of the condition were reported in the Pope’s Physician in 1736.2 This described four generations of one family with progressive heart failure, SCD, and unusual pathologic findings on autopsy. Marcus et al,3 provided the first systematic description of 24 adults presenting with VT, all with a left bundle branch block (LBBB) morphology and superior axis. Further pathognomonic electrocardiographic features of the disease were described by Fontaine et al, 4 who was credited with coining the electrocardiographic epsilon (σ) wave.
The diagnosis of ARVC requires the identification of major and minor criteria laid down by the working group on myocardial and pericardial diseases of the European Society of Cardiology in 1994, which was revised in 2010 [Table 1]. The diagnosis is made by the identification of two major criteria, one major and two minor criteria, or four minor criteria.5,6 There is no curative therapy for the condition given its degenerative nature.
In this report, we describe a case of ARVC in a young man who was treated at a tertiary care hospital. To the best of our knowledge, this description is the first confirmed case of definite ARVC in Oman.
Table 1: The 2010 revised European Society of Cardiology criteria for the diagnosis of arrhythmogenic right ventricular cardiomyopathy/dysplasia (ARVC/D).
|
1. Global or regional dysfunction and structural alterations |
|
By 2D-echo
- Regional RV akinesia, dyskinesia, or aneurysm and one of the following (end diastole):
- PLAX RVOT ≥ 32 mm (corrected for BSA ≥ 19 mm/m2).
- PSAX RVOT ≥ 36 mm (corrected for BSA ≥ 21 mm/m2).
- Fractional area change ≤ 33%
By MRI
- Regional RV akinesia or dyskinesia or dyssynchronous RV contraction and one of the following:
- Ration of RV end-diastolic volume to BSA ≥ 110 mL/m2 (male) or ≥ 100 mL/m2 (female).
- RV ejection fraction ≤ 40%
By RV angiography
- Regional RV akinesia, dyskinesia, or aneurysm.
|
By 2D echo
- Regional RV akinesia, dyskinesia, or aneurysm and one of the following (end diastole):
- PLAX RVOT ≥ 29 to < 32 mm (corrected for BSA ≥ 16 to < 19 mm/m2).
- PSAX RVOT ≥ 32 to < 36 mm (corrected for BSA ≥ 18 to < 21 mm/m2).
- Fractional area change > 33% to ≤ 40%
By MRI
- Regional RV akinesia or dyskinesia or dyssynchronus RV contraction and 1 of the following:
- Ration of RV end-diastolic volume to BSA ≥ 100 to < 110 mL/m2 (male) or ≥ 90 to < 100 mL/m2 (female).
- RV ejection fraction > 40% to ≤ 45%
|
|
2. Tissue characterization of wall |
- Residual myocyte < 60% by morphometric analysis (or < 50% if estimated), with fibrous replacement of the RV free wall myocardium in ≥ 1 sample, with our without fatty replacement of tissue on endomyocardial biopsy.
|
- Residual myocyte 60% to 75% by morphometric analysis (or 50% to 65% if estimated), with fibrous replacement of the RV free wall myocardium in ≥ 1 sample, with our without fatty replacement of tissue on endomyocardial biopsy.
|
|
3. Repolarization abnormalities |
- Inverted T waves in the right precordial leads (V1, V2, and V3) or beyond in individuals > 14 years of age (in the absence of complete right bundle branch block QRS ≥ 120 ms).
|
- Inverted T waves in leads V1 and V2 in individuals > 14 years of age (in the absence of complete right bundle branch block) or in V4, V5, or V6.
|
|
4. Depolarization/conduction abnormalities: |
- Epsilon wave (reproducible low-amplitude signals between the end of QRS complex to the onset of the T wave) in the right precordial leads (V1 to V3).
|
- Late potentials by SAECG in ≥ 1 of 3 parameters in the absence of a QRS duration o ≥ 110 ms on the standard ECG.
- Filtered QRS duration (fQRS) ≥ 114 ms.
- Duration of terminal QRS < 40 μV (low-amplitude signal duration) ≥ 38 ms.
- Root mean square voltage of QRS ≥ 55 ms measured from nadir of the S wave to the end of the QRS including R’ in V1, V2, or V3 in the absence of complete right bundle branch block.
|
|
5. Arrhythmias |
- Non-sustained or sustained ventricular tachycardia of left bundle branch morphology with superior axis (negative or indeterminate QRS in leads II, III, and aVF and positive in leads aVL.
|
- Non-sustained or sustained ventricular tachycardia of RV outflow configuration left bundle-branch block morphology with the inferior axis (positive QRS in leads II, III, and aVF and negative in lead aVL) or of unknown axis.
- > 500 ventricular extrasystoles per 24 hours (Holter)
|
|
6. Family history |
Diagnosis: Definite = 2 major or 1 major + 2 minor or 4 minor; Borderline= 1 major + 1 minor or 3 minor; Possible= 1 major or 2 minor.
2D-echo: 2D-echocardiogram; PLAX: parasternal long axis; PSAX: parasternal short axis; RVOT: right ventricular outflow tract; BSA: body surface area;
MRI: magntice resorance imaging; RV: ight ventricle; ECG: electrocardiogram.
Case Report

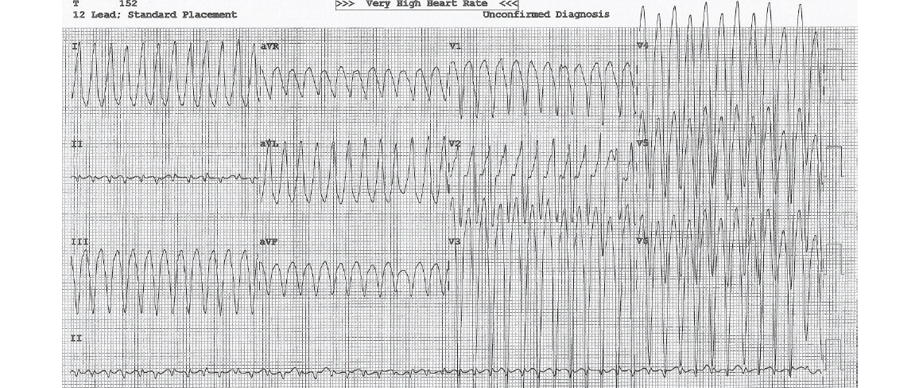

Figure 1: On presentation, a 12-lead electrocardiogram showed ventricular tachycardia of a left bundle branch morphology and superior axis.

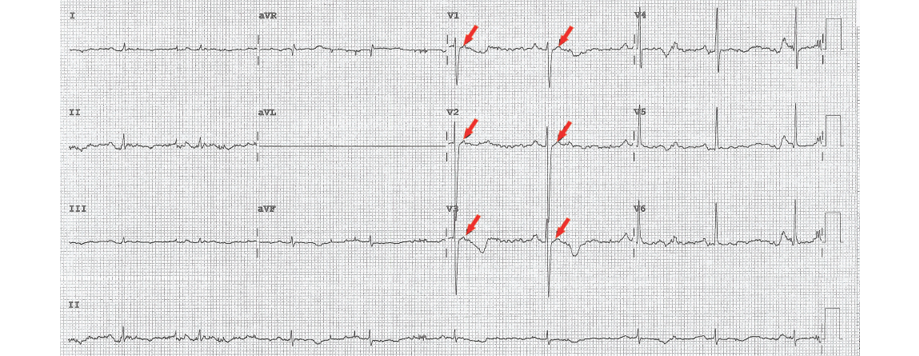

Figure 2: Post-electrical cardioversion 12-lead electrocardiogram showing epsilon waves (red arrows).

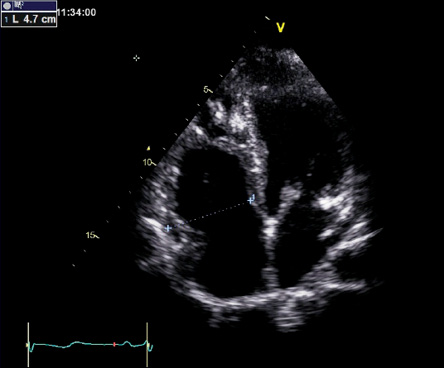

Figure 3: Apical four-chamber view showing a dilated right ventricle with a basal dimension of 47 mm (normal is < 43 mm) and prominent trabeculations toward the apical segments.

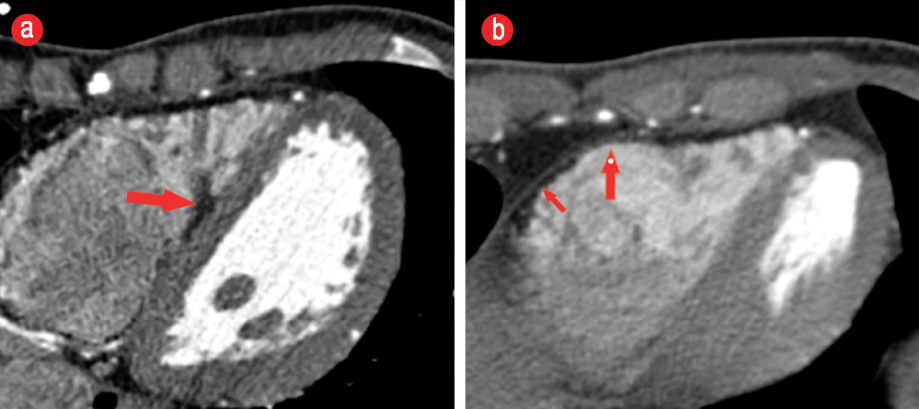

Figure 4: Axial cardiac computed tomography images at the level of the interventricular septum and base of the heart (a) showing fatty infiltration of the right ventricular side of the septum extending into the adjacent trabeculae (red arrow). (b) Fatty infiltration of the anterior and inferior wall of the right ventricle (short red arrow) and scalloping of the anterior wall (long red arrow).
A 22-year-old male, who was a non-professional but avid football player was admitted to the Sultan Qaboos University Hospital twice over one month for evaluation and investigation of syncope and symptomatic palpitations. His past medical health was unremarkable, except for periods of violent palpitations experienced while playing football. Before the first hospitalization, there was a witnessed brief syncopal event (< 1 minute) with rapid recovery to baseline.
On admission, his clinical examination was unremarkable. His baseline electrocardiogram (ECG) showed precordial T-wave inversions in V1, V2, and V3 but no other abnormalities. A quick bedside transthoracic echocardiogram was performed, which ruled out hypertrophic cardiomyopathy. A 24-hour Holter monitoring was undertaken during hospitalization and showed no significant arrhythmias. There was a six-second sinus pause noted during sleep. He was then subjected to an exercise stress test. He exercised for 20 minutes (Bruce protocol) without significant exercise-induced arrhythmias. There was an adequate heart rate response to exercise and normal recovery in the post-exercise period. He was discharged after 48-hours of observation and followed-up in the cardiac electrophysiology clinic. Two weeks later, he was readmitted with severe symptomatic palpitations. This time, the palpitations occurred after playing football and persisted. He was presyncopal and evaluated at a local health center.
A wide-complex tachycardia was documented, and he did not respond to a trial of intravenous adenosine up to 12 mg. His initial 12-lead ECG at the University Hospital showed ventricular tachycardia with LBBB morphology and superior axis [Figure 1]. He was cardioverted back to sinus rhythm and treated with intravenous amiodarone. His post-cardioversion ECG showed persistent T-wave inversions in leads V1, V2, and V3 as well as epsilon waves [Figure 2]. A complete 2D-echocardiogram (2D-echo) was performed and documented a dilated, moderately hypokinetic RV with prominent trabeculations [Figure 3]. Due to unavailability of facilities for cardiac magnetic resonance imaging, a gated cardiac computed tomography (CT) was performed. This ruled out coronary anomalies and confirmed the presence of right ventricular outflow tract (RVOT) dilatation. There were hypodense lesions noted on the RV aspect of the interventricular septum, RV trabeculae, and the RV free wall and inferior-apical RV wall [Figure 4]. The appearance and density was consistent with adipose tissue. There was also scalloping noted in the basal inferior wall. The patient was maintained on bisoprolol and intravenous amiodarone. He was transferred to the national cardiac electrophysiology center for automatic implantable cardioverter defibrillator (AICD) implantation for secondary prevention. His 10 siblings will undergo electrocardiographic and echocardiographic screening on an outpatient basis.
Discussion
In this young male, the diagnosis of definite ARVC was established by satisfying multiple major criteria. These included the documentation of sustained VT of the morphology described in Table 1 (arrhythmia criteria), the presence of epsilon waves (depolarization criteria) and T wave inversions in V1, V2, and V3 in the absence of complete Right Bundle Branch Block (RBBB) (repolarization criteria). The imaging modalities added further insight in documenting RV structural abnormalities on 2D-echo and cardiac CT.
Due to the varied clinical manifestations of the condition, the exact prevalence is difficult to ascertain. In the SCD literature, ARVC accounts for 11−22% of cases in young athletes. The prevalence in the general population is 1:5000 with men three times more commonly affected than women.7
The most common presentation is in the form of exercise-induced sustained and non-sustained VT. This classically originates from the RV and, therefore, has LBBB morphology and a superior axis. Clinically, patients present with recurrent palpitations and syncope. In advanced cases, heart failure dominates the clinical picture.8
Once documented, VT is treated pharmacologically with the combination of β-blockers and class III antiarrhythmic agents (amiodarone or sotalol). An AICD is indicated in patients with prior aborted SCD or documented VT (secondary prevention). The device is also indicated for primary prophylactic
indications in patients with severe RV dilatation,
extensive RV involvement, inducible VT at the time of electrophysiological study, and in the presence of documented spontaneous non-sustained VT on non-invasive monitoring.9
There has been an increasing interest in cardiac CT imaging in identifying patterns of adipose deposition characterizing the disease. Characteristic findings include thinning of the RVOT, free wall subepicardial fatty infiltration, fat in the moderator band, trabeculae, and ventricular septum.10 Some of these were seen in our patient. More recently, a CT scoring system has been devised and validated by a team of Japanese investigators with superior diagnostic and discriminatory ability. Using this system, the diagnosis of definite ARVC can be achieved with 90% accuracy.11
Conclusion
This is the first report of a case of ARVC in Oman. Our report also describes the unique findings characterizing the disease condition on gated cardiac CT, which has been gaining increasing interest as a diagnostic technique. The condition requires a high index of suspicion as it is an important cause of SCD in the young. The genetically-mediated, progressively degenerative nature of the disease has major implications for family screening. Device therapy with AICD is a cornerstone in the management for both primary and secondary preventive indications.
Disclosures
The authors declared no conflicts of interest.
